SiC Etcher SA-GDE C200L
SiC Etcher SA-GDE C200L Call for Price
SiC Etcher SA-GDE C200 - Image 1
SiC Etcher SA-GDE C200 - Image 2
Click to enlarge
SiC Etcher SA-GDE C200

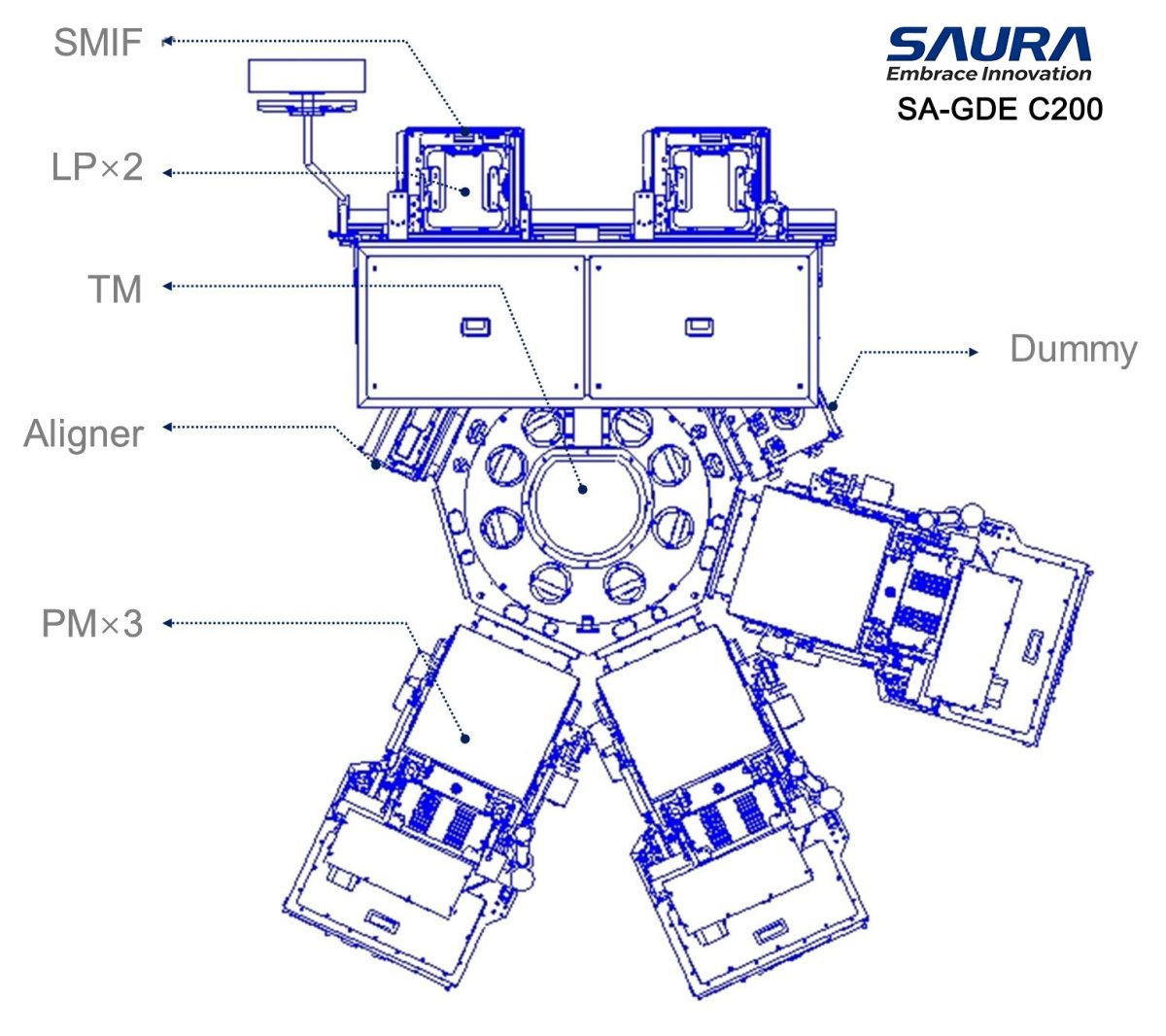

SiC Etcher SA-GDE C200 - Image 2

SiC Etcher SA-GDE C200

19 People watching this product now!
SKU: SA-GDE C200

Ā Ā Ā Ā Ā Ā SA-GDE C200 is a high plasma density etcher designed for 6/8-inch SiC power, MEMS and GaAs RF devices, executing SiC trench, via and mark etching. With dual-coil RF source and 2650L/s turbo pump, it reaches 6000A/min SiC etch rate. Y2O3-coated components reduce contamination, delivering long MTBC and reliable mass-production performance for wide-bandgap semiconductors.Ā

Call for Price

(Price on request)

Compare
Add to wishlist

Description

Datasheet

SA-GDE C200 is a high plasma density etcher designed for 6/8-inch SiC power, MEMS and GaAs RF devices, executing SiC trench, via and mark etching. With dual-coil RF source and 2650L/s turbo pump, it reaches 6000A/min SiC etch rate. Y2O3-coated components reduce contamination, delivering long MTBC and reliable mass-production performance for wide-bandgap semiconductors.

Feature

Application
  • Higher Plasma Density
  • Comparable
  • Higher ER
  • More Stable
  • Longer duration
  • BAW
  • SiC Power
  • VCSEL
  • MEMS
  • GaN/GaAs RF

Principleļ¼š

Specification

Features

Wafer Size6″, 8″
Etching MaterialsPolymer, AlScN, SiC, SiO2, SiN

General

ProcessesSiC trench/SiC Via/SiC Mark
Source-RFDual coil,13.56MHz
Source Range3000W+3000W
Bias-RF13.56MHz
Top WindowChiller heating
ESCDual electrode
Turbo2650L/s
Gas InjectorSymmetric 8 injectors
Surface TreatementY2O3 Coating
Maintain Time3h
SiC Etch Rate6000A/min
PA> 0.2Ī¼m < 30ea
MTBC200RFH
Metal ContaminationFree
Size(LƗWƗH)3279mmƗ3253mmƗ2339mm
