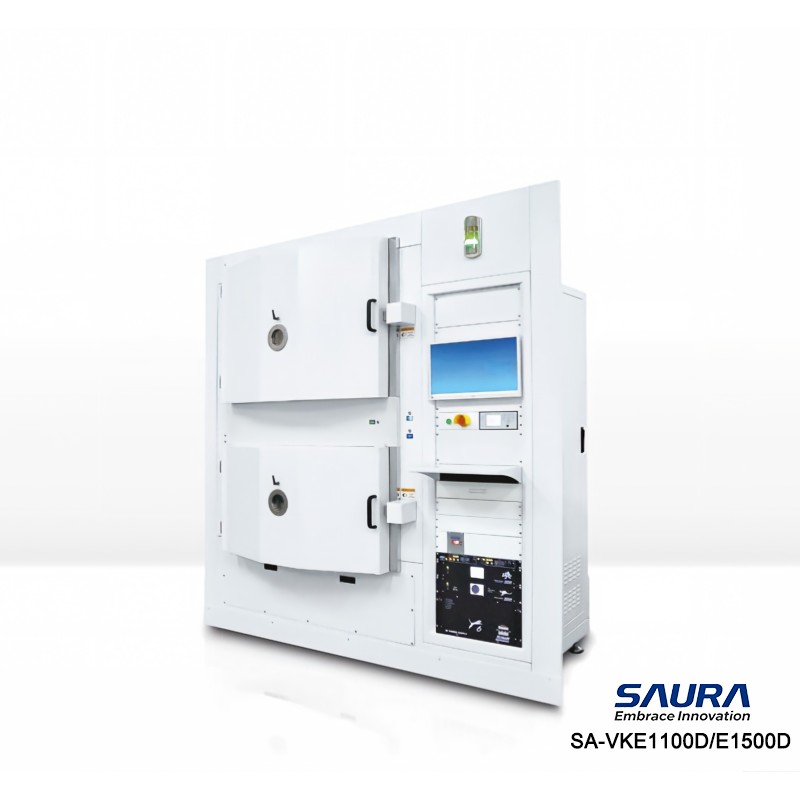

Ā Ā Ā Ā Ā Ā SA-VKE1100D and SA-VKE1500D are mass-production dual-chamber electron beam evaporation systems. Featuring large coating capacity, stable running performance, full automatic control and easy maintenance, they perfectly fulfill evaporation coating demands for high-volume manufacturing and oversized workpieces.Ā
SA-VKE1100D and SA-VKE1500D are mass-production dual-chamber electron beam evaporation systems. Featuring large coating capacity, stable running performance, full automatic control and easy maintenance, they perfectly fulfill evaporation coating demands for high-volume manufacturing and oversized workpieces.
|
Feature |
Application |
|---|---|
|
|
Principleļ¼
Features
| Number of Crucibles(max.) | 4 |
|---|---|
| Uniform Deposition Area(max.) | Ć960āÆmm |
| Ultimate Vacuum | 1E-5Pa |
General
| Power Supply(max.) | 10kW |
|---|---|
| Film thickness monitoring | Crystal oscillator controller |
| Ion Source | RF & Kaufman & Hall ion source |
| Fixture types | Dome & Planetary |
| Pumping System | Cryopump / magnetically levitated turbo-molecular pump + Dry mechanical pump |
| Coating Uniformity | Ā±2% |
| Coating Repeatability | Ā±2% |
| Vacuum Measurement | Full-range vacuum gauge |
| Temperature Range | RT~300ā |

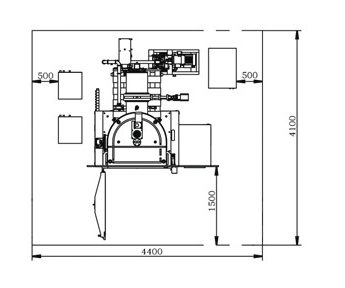

| Size(LĆWĆH) | 4.4mĆ4.1mĆ2.6m |
In stock
| Number of Crucibles(max.) | 6 |
|---|---|
| Automatic Loadlocks | Single &multi-chip automatic laodlock |
| Workpiece Angle | -45Ā°~45Ā°ļ¼adjustable |
| Power Supply(max.) | 10kW |
| Film thickness monitoring | Crystal oscillator controller |
| Ion Source | Kaufman & Hall ion source |
| Fixture types | Dome & Planetary |
| Pumping System | Cryopump / magnetically levitated turbo-molecular pump + Dry mechanical pump |
| Coating Uniformity | Ā±2% |
| Coating Repeatability | Ā±2% |
| Uniform Deposition Area(max.) | Ć300āÆmm |
| Ultimate Vacuum | 1E-5Pa |
| Vacuum Measurement | Full-range vacuum gauge |
| Temperature Range | RT~500ā |
| Size(LĆWĆH) | 4.0mĆ3.1mĆ2.9m |
In stock
| Processing Position | Patterned material modification and waveguide structures |
|---|---|
| Wavelength | 1030nm, 515nm |
| Objective Lens | 50Ć/20Ć |
| Illumination | Reflection & Transmission |
| Functional Configuration | External energy adjustment, 2D motorized slit |
| Optional | Spatial Light Modulator (SLM), auto-focus tracking |
| Adjustment Stage | Manual |
| Travel Range of Motion Stage | 200āÆmm Ć 200āÆmm |
| Fixture & Workstation | Large-area transparent adsorption stage |
In stock
| Number of Cathodes(max.) | 4 |
|---|---|
| Sputtering Power Supply | DC / RF / pulsed DC, freely switchable |
| Ion Source | RF & Kaufman & Hall ion source |
| Bias | RF / pulsed DC |
| Vacuum Sampling Chamber | Multi-wafer fully-automatic sampling chamber, optional |
| Pumping System | Cryopump / magnetically levitated turbo-molecular pump + Dry mechanical pump |
| Flow Control | Digital mass flow meter |
| Coating Uniformity | Ā±1.5% |
| Coating Repeatability | Ā±2% |
| Uniform Deposition Area(max.) | 5ĆĆ300āÆmm |
| Ultimate Vacuum | 1E-5Pa |
| Vacuum Measurement | Full-range vacuum gauge + āCapacitance diaphragm gauge |
| Temperature Range | -50~800ā |
| Size(LĆWĆH) | 3.2mĆ3.3mĆ2.2m |
In stock
| Number of Process Chambers(max.) | 5 |
|---|---|
| Process Chamber Type | Sputter & Degas & Pre-clean & Evaporation |
| Number of Sample Chambers(max.) | 2 |
| Autosampling Chamber | Integrated with BROOKS system |
| Ion Source | optional |
| Pumping System | Cryopump / magnetically levitated turbo-molecular pump + Dry mechanical pump |
| Flow Control | Digital mass flow meter |
| Coating Uniformity | Ā±2% |
| Coating Repeatability | Ā±2% |
| Uniform Deposition Area(max.) | Ć200āÆmm |
| Ultimate Vacuum | 1E-5Pa |
| Vacuum Measurement | Full-range vacuum gauge + āCapacitance diaphragm gauge |
| Temperature Range | -80~500ā |
| Size(LĆWĆH) | 3.73mĆ2.75mĆ2.2m |
In stock
| Wafer Size | 6″, 8″ |
|---|---|
| Etching Materials | Si, PolySi |
| Processes | Poly EB/STI/Poly gate/CT Si |
| Coil | Dual Zone |
| Match Mode | L-Match |
| Magnetic Shield | Yes |
| Gas Injector | Dual Zone |
| FRC | Yes |
| Liner | Symmetric Grid |
| Edge Ring | CIP version |
| ESC | Dual Zone |
| ESC Materials | Ceramic |
| Lift Pin | Ceramic |
| Turbo | 1600L/s |
| Chamber | Symmetric |
| Size(LĆWĆH) | 3279mmĆ3253mmĆ2339mm |
