Metal Etcher SA-NMC508SEM

SKU: SA-NMC508SEM

SA-NMC508SEM is a mass-production proven 6/8-inch metal etcher targeting logic, Si/SiC/GaN power and MEMS devices. It etches AlCu, W, TiN and related alloys for TM, IM and WEB processes. Equipped with dual coils and fully-automatic RF matching, it features 1600L/s high-flow pump and 350RFh long MTBC, ensuring superior etching uniformity, high throughput and low operation cost.

Login to see prices

(Price on request)

Email: sales@saurasemi.com

Compare

Description

Datasheet

SA-NMC508SEM is a mass-production proven 6/8-inch metal etcher targeting logic, Si/SiC/GaN power and MEMS devices. It etches AlCu, W, TiN and related alloys for TM, IM and WEB processes. Equipped with dual coils and fully-automatic RF matching, it features 1600L/s high-flow pump and 350RFh long MTBC, ensuring superior etching uniformity, high throughput and low operation cost.

Feature	Application
Improve Etch U% Comparable High Etch Rate Better PA Control Better CoO & CoC	Logic Power SiC MEMS GaN

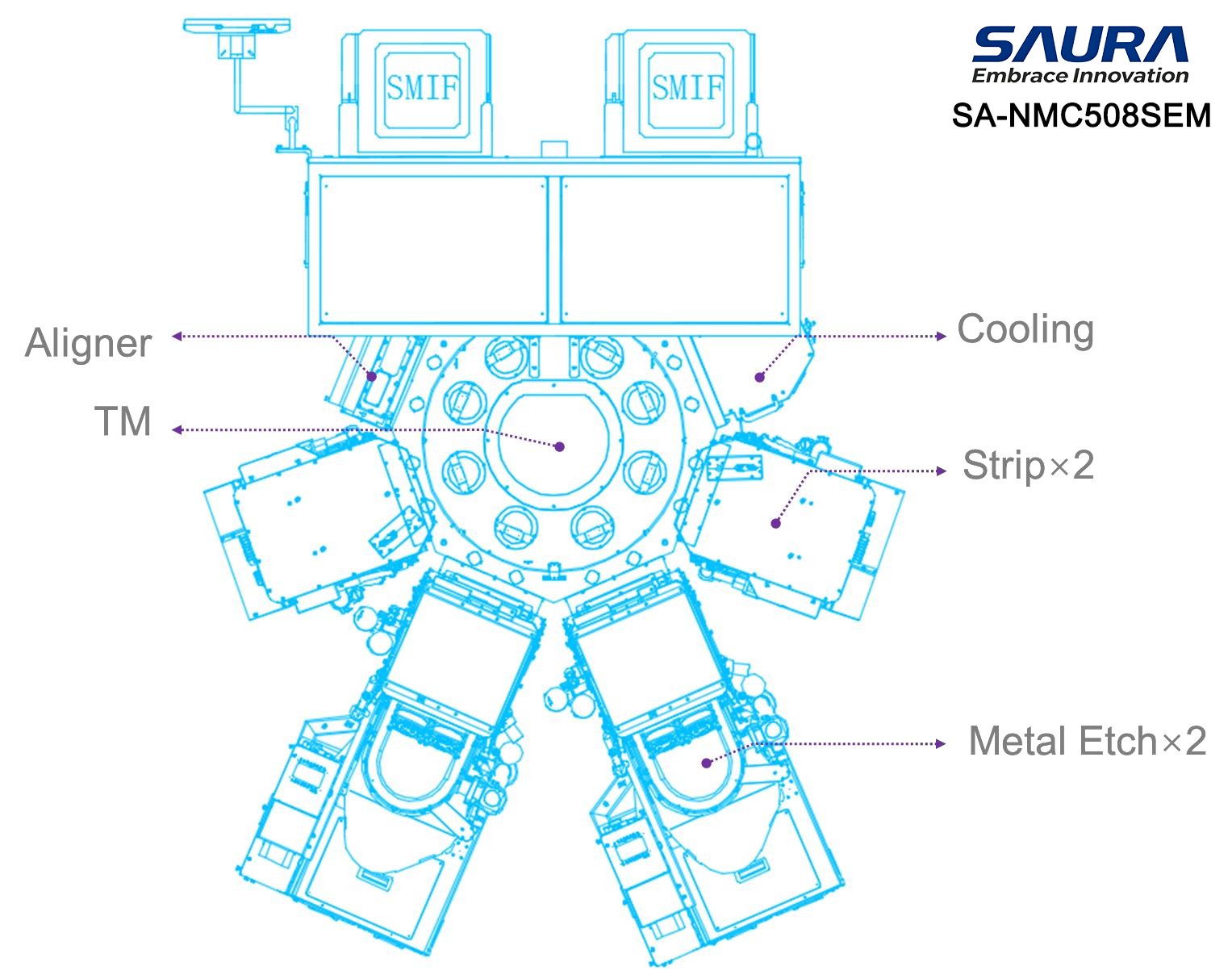

Principle：

Specification

Features

Wafer Size	6″, 8″

General

Etching Materials	AlCu, AlSiCu, Ti, TiN, TiW, W
Processes	TM/IM/WEB
Coil	Dual Coil
Match Mode	Fully automatic matching
Upper frequency	13.56MHz
Window Heating	Heater Heating
Chamber Heating	Chiller
Pump	1600L/s
N2 Pressure Control	Y
Throughput	6K/M
MTBC	350RFh
Size(L×W×H)or(D×W×H)	3250mm×2580mm×2397mm
