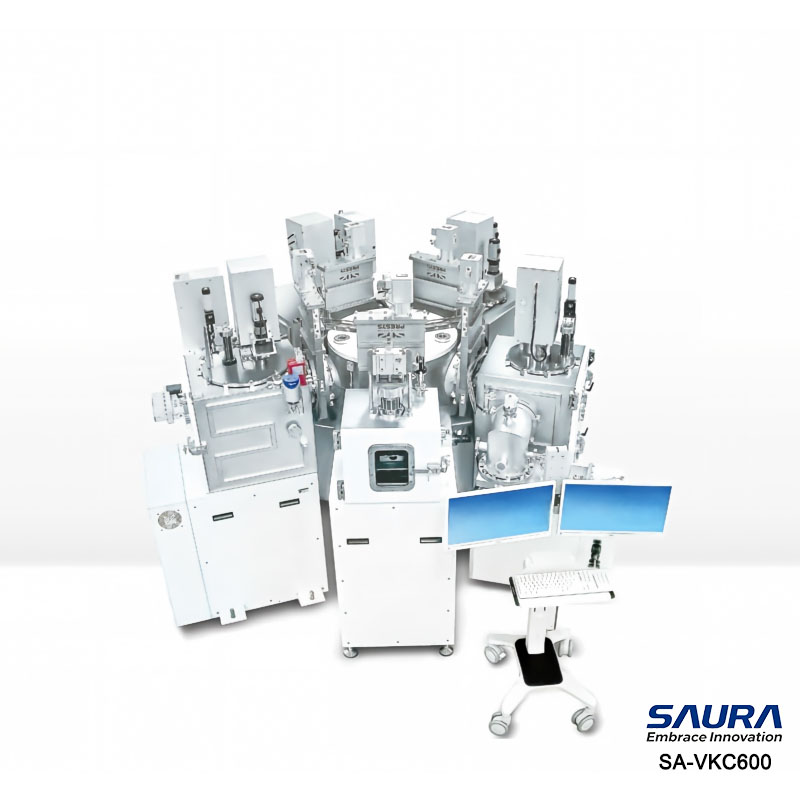

SA-SA-VKC600 is a versatile multi-chamber integrated system. Built for high performance, superior stability and reliable operation, it features a highly automated control system to satisfy diverse process-integration requirements.
SA-SA-VKC600 is a versatile multi-chamber integrated system. Built for high performance, superior stability and reliable operation, it features a highly automated control system to satisfy diverse process-integration requirements.
|
Feature |
Application |
|---|---|
|
|
Principle：
Features
| Uniform Deposition Area(max.) | Ø200 mm |
|---|---|
| Ultimate Vacuum | 1E-5Pa |
General
| Process Chamber Type | Sputter & Degas & Pre-clean & Evaporation |
|---|---|
| Autosampling Chamber | Integrated with BROOKS system |
| Ion Source | optional |
| Pumping System | Cryopump / magnetically levitated turbo-molecular pump + Dry mechanical pump |
| Flow Control | Digital mass flow meter |
| Coating Uniformity | ±2% |
| Coating Repeatability | ±2% |
| Vacuum Measurement | Full-range vacuum gauge + Capacitance diaphragm gauge |
| Temperature Range | -80~500℃ |
| Size(L×W×H)or(D×W×H) | 3.73m×2.75m×2.2m |
In stock
| Number of Crucibles(max.) | 6 |
|---|---|
| Power Supply(max.) | 10kW |
| Automatic Loadlocks | Single &multi-chip automatic laodlock |
| Workpiece Angle | -45°~45°，adjustable |
| Film thickness monitoring | Crystal oscillator controller |
| Ion Source | Hall ion source |
| Fixture types | Dome & Plate |
| Pumping System | Cryopump / magnetically levitated turbo-molecular pump + Dry mechanical pump |
| Coating Uniformity | ±3% |
| Coating Repeatability | ±2% |
| Uniform Deposition Area(max.) | Ø200 mm |
| Ultimate Vacuum | 1E-5Pa |
| Vacuum Measurement | Full-range vacuum gauge |
| Temperature Range | -50~300℃ |
| Size(L×W×H)or(D×W×H) | 3.15m×2.4m×2.2m |
In stock
| Number of Crucibles(max.) | 6 |
|---|---|
| Automatic Loadlocks | Single &multi-chip automatic laodlock |
| Workpiece Angle | -45°~45°，adjustable |
| Power Supply(max.) | 10kW |
| Film thickness monitoring | Crystal oscillator controller |
| Ion Source | Kaufman & Hall ion source |
| Fixture types | Dome &Planetary |
| Pumping System | Cryopump / magnetically levitated turbo-molecular pump + Dry mechanical pump |
| Coating Uniformity | ±2% |
| Coating Repeatability | ±2% |
| Uniform Deposition Area(max.) | Ø260 mm |
| Ultimate Vacuum | 1E-5Pa |
| Vacuum Measurement | Full-range vacuum gauge |
| Temperature Range | RT~500℃ |
| Size(L×W×H)or(D×W×H) | 3m×2.5m×2.2m |
In stock
| Processing Position | Patterned material modification and waveguide structures |
|---|---|
| Wavelength | 1030nm, 515nm |
| Objective Lens | 50×/20× |
| Illumination | Reflection & Transmission |
| Functional Configuration | External energy adjustment, 2D motorized slit |
| Optional | Spatial Light Modulator (SLM), auto-focus tracking |
| Adjustment Stage | Manual |
| Travel Range of Motion Stage | 200 mm × 200 mm |
| Fixture & Workstation | Large-area transparent adsorption stage |
In stock
| Power Supply(max.) | 8kW |
|---|---|
| Workpiece Angle | -45°~45°，adjustable |
| Film thickness monitoring | Crystal oscillator controller |
| Ion Source | Kaufman & Hall ion source |
| Fixture types | Dome & Knudsen & Plate |
| Pumping System | Cryopump / magnetically levitated turbo-molecular pump + Dry mechanical pump |
| Coating Uniformity | ±3% |
| Coating Repeatability | ±2% |
| Uniform Deposition Area(max.) | Ø300 mm |
| Ultimate Vacuum | 1E-5Pa |
| Vacuum Measurement | Full-range vacuum gauge |
| Temperature Range | -80~200℃ |
| Size(L×W×H)or(D×W×H) | 3.3m×2.7m×2.2m |
In stock
| Wafer Size | 6″, 8″ |
|---|---|
| Etching Materials | AlScN, Polymer, SiC, SiN, SiO2 |
| Processes | SiC trench/SiC Via/SiC Mark |
| Source-RF | Dual coil,13.56MHz |
| Source Range | 3000W+3000W |
| Bias-RF | 13.56MHz |
| Top Window | Chiller heating |
| ESC | Dual electrode |
| Turbo | 2650L/s |
| Gas Injector | Symmetric 8 injectors |
| Surface Treatement | Y2O3 Coating |
| Maintain Time | 3h |
| SiC Etch Rate | 6000A/min |
| PA | > 0.2μm < 30ea |
| MTBC | 200RFH |
| Metal Contamination | Free |
| Size(L×W×H)or(D×W×H) | 3279mm×3253mm×2339mm |
In stock
| Wafer Size | 6″, 8″ |
|---|---|
| Process | FOX/STI Anneal/Pad-Oxide/Gate Oxide/BPSG Reflow/Final Alloy/Cu Anneal/N2 Anneal/Polyimide Cure |
| Compatible Materials | GaN, Si, SiC |
| Teamperature Control Accuracy | ≤±1℃ |
| Flat Zone Length | 860mm |
| Batch Size | 150/125 |
| SMIF/Open Cassette/OHT | Option |
| N2 Load Lock | Option |
| AGC | Option |
| Particle Control | ≤20@0.16μm |
| Uniformity(WIW/WTW/LTL) | ≤2%/1.5%/1.5% |
| Metal Contamination (ICP-MS/TXRF) | 5E10 |
| Loccalization Progress | Continuous improvement |
| Size(L×W×H)or(D×W×H) | 4093mm×900mm×3302mm, 4420mm×900mm×3302mm |
