Digital Projection Maskless Lithography System SA-UVD
Digital Projection Maskless Lithography System SA-UVD - Image 2
Digital Projection Maskless Lithography System SA-UVD - Image 3

Digital Projection Maskless Lithography System SA-UVD

SKU: SA-UVD

    The SA-UVD digital projection maskless lithography system adopts digital micro-mirror technology for high-speed maskless pattern generation, achieving a minimum feature size of 500 nm.
Equipped with high-precision real-time focusing and visual alignment overlay technology, it is mainly used for rapid prototyping in the fields of MEMS, photonic devices, quantum computing chips, and sensors.

(Price on request)

Compare

Description

Datasheet

    The SA-UVD digital projection maskless lithography system adopts digital micro-mirror technology for high-speed maskless pattern generation, achieving a minimum feature size of 500 nm.
Equipped with high-precision real-time focusing and visual alignment overlay technology, it is mainly used for rapid prototyping in the fields of MEMS, photonic devices, quantum computing chips, and sensors.

Feature

Application
    • DMD-driven exposure
    • Rapid prototyping
    • Visual alignment
    • Multi-grayscale output
    • MEMS
    • Photonic devices
    • Quantum computing chips
    • Sensors
Processing Cases：

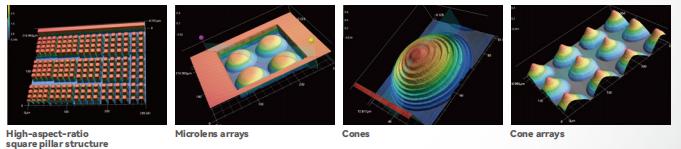

2.5D structures2.5D structures
2D structures

Specification

Features

Wavelength

General

Direct-write Resolution500nm
Writing Speed10 mm2/min
Maximum Substrate Size8-inch
Substrate Thickness0.1 mm ~ 8 mm
Maximum Exposure Area200 mm × 200 mm
Grayscale Level256, 1024, 2048, 4096
Auto-focusing Range70 μm
Objective Lens5×, 10×, 20×, 50×
Writing & Slicing SoftwareSupports multiple formats including JPG, TIFF, and GDS.
Scripted Writing ModeProvides a scripted programming interface to support user-defined processing structures.
Online Drawing Processing ModeSupports real-time online drawing; allows direct drawing of custom graphics on the live sample image.
Real-time Auto-focusingOptical focusing
Electrical Conditions230VAC±5%, 50/60 Hz, 10 A
Environmental ConditionsTemperature: 21±1°C;Relative Humidity: 40%~60%, non-condensing
Compressed Air6~9 bar, tolerance±0.5 bar
Ambient LightingYellow light
Cleanliness LevelClass 1000 cleanroom
Size(L×W×H)or(D×W×H)940mm×850mm×1470mm
Weight250kg
